Cold-formed metal studs are spaced at sixteen inches on center where wall backing is required. A continuous flat strap backing is secured horizontally across the studs. Three number ten sheet metal screws fasten the strap at each stud location. Stud bracing is provided at four-foot intervals on center.

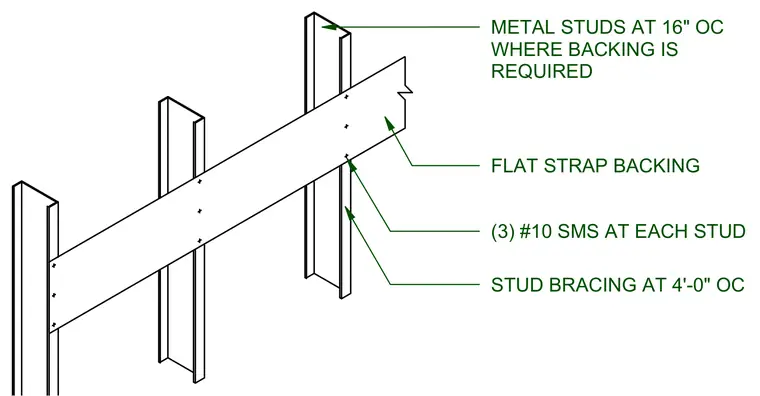

(3) #10 SMS AT EACH STUD FLAT STRAP BACKING STUD BRACING AT 4'-0" OC METAL STUDS AT 16" OC WHERE BACKING IS REQUIRED
