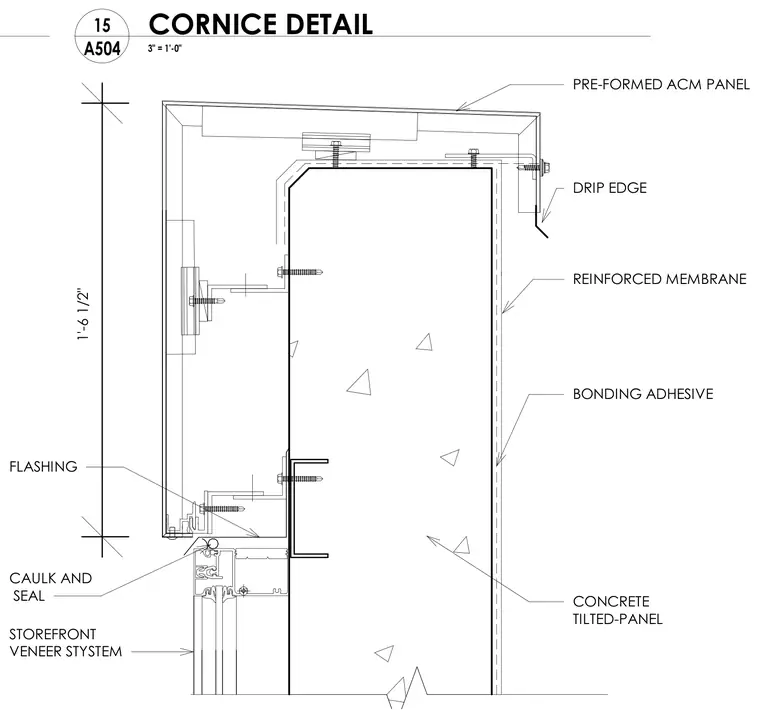

Pre-formed aluminum composite metal panels clad the concrete tilt-up panel at the parapet, secured with brackets and mechanical fasteners. A reinforced membrane with bonding adhesive is applied over the concrete substrate for weatherproofing. Flashing, caulk, and seal manage moisture at the transition to the storefront veneer system below. A drip edge at the top edge of the panel directs water away from the building envelope.
C42-PF C40-ST REINFORCED MEMBRANE BONDING ADHESIVE PRE-FORMED ACM PANEL 1'-6 1/2" FLASHING CAULK AND SEAL STOREFRONT VENEER STYSTEM CONCRETE TILTED-PANEL DRIP EDGE 3" = 1'-0" A504 15 CORNICE DETAIL
