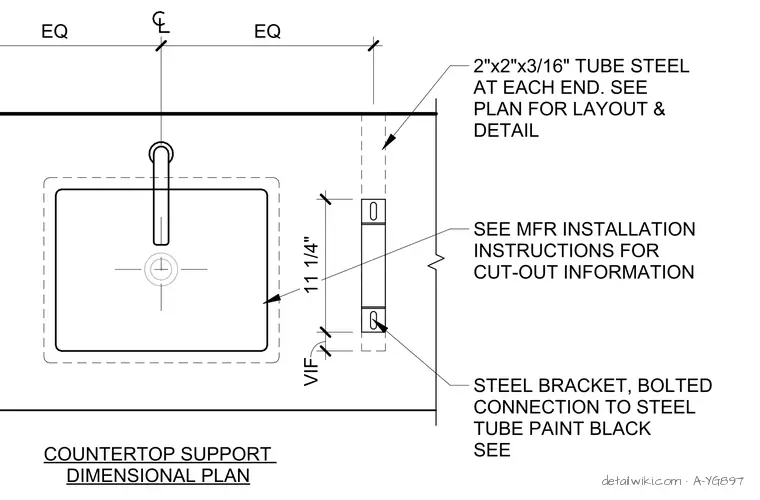

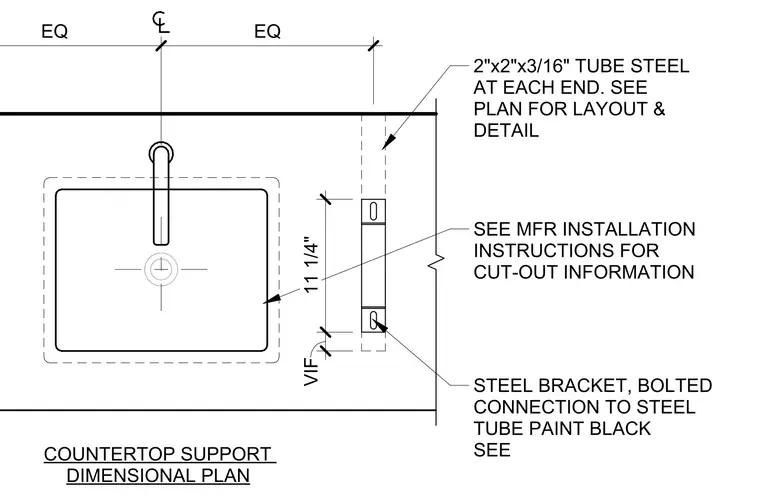

Structural support for a vanity countertop consists of two-inch by two-inch by three-sixteenths-inch hollow structural section tube steel members positioned at each end. A steel bracket connects to the tube steel via a bolted connection and requires a black painted finish. Verify sink cutout dimensions in the field per manufacturer installation instructions. Reference the primary floor plan for tube steel layout and additional detailing.
