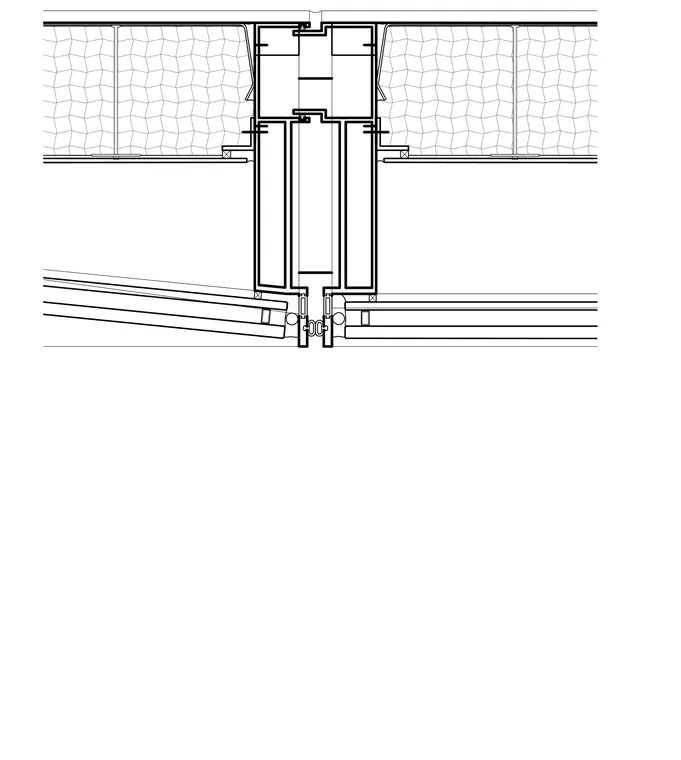

An extruded aluminum pleat mullion connects adjacent exterior wall panels and glazing frames. The vertical mullion profile features interlocking thermal breaks and gasket channels for weathersealing. Insulated metal panels terminate on either side of the framing members with interior framing supports. Gasket seals and retainer caps complete the joint assembly.
