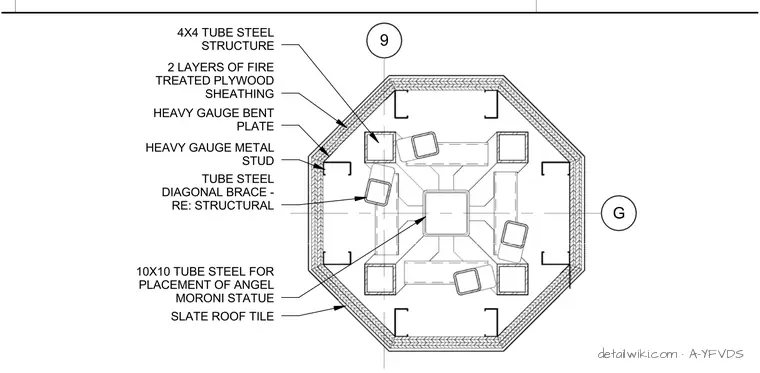

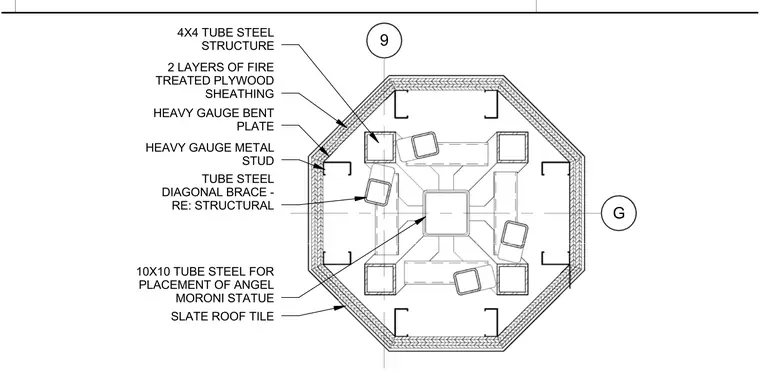

A-YFVDS — Tower Detail Two (Upward View)

Architectural · A-YFVDS

Tower Detail Two (Upward View)

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Cold-formed Steel Metal (misc.)Steel Stone Timber / Wood

Elements

Bracing Connections / Plates Roofs

Connections

Bracing Connection HSS Connection

Text on the drawing

9 G HEAVY GAUGE BENT PLATE 2 LAYERS OF FIRE TREATED PLYWOOD SHEATHING HEAVY GAUGE METAL STUD 4X4 TUBE STEEL STRUCTURE 10X10 TUBE STEEL FOR PLACEMENT OF ANGEL MORONI STATUE SLATE ROOF TILE TUBE STEEL DIAGONAL BRACE - RE: STRUCTURAL 3

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
