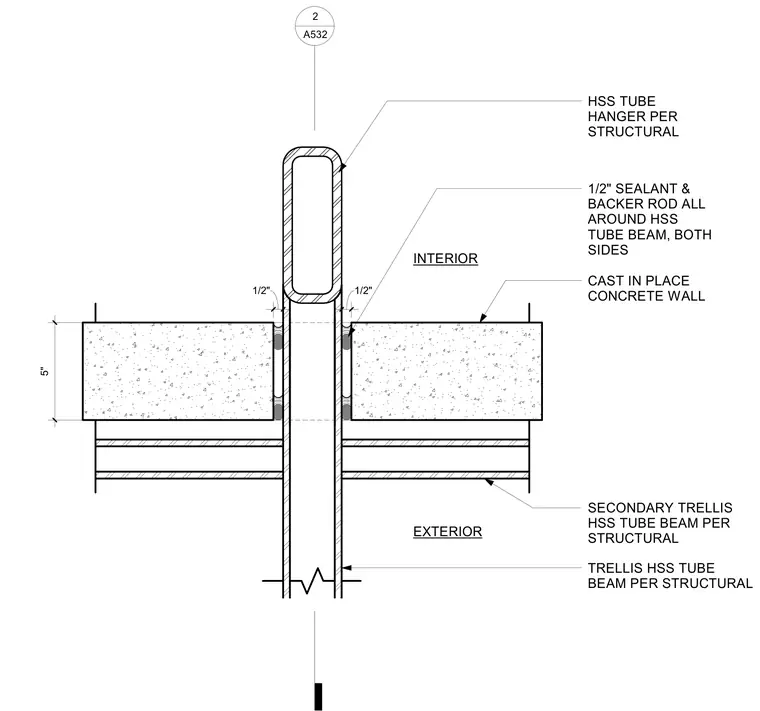

A hollow structural section tube hanger and secondary trellis hollow structural section tube beam connect through a cast-in-place concrete wall. A half-inch joint with sealant and backer rod is detailed all around the hollow structural section tube beam on both the interior and exterior sides. The concrete wall has a thickness of five inches at the penetration.
2 A532 INTERIOR EXTERIOR HSS TUBE HANGER PER STRUCTURAL TRELLIS HSS TUBE BEAM PER STRUCTURAL SECONDARY TRELLIS HSS TUBE BEAM PER STRUCTURAL CAST IN PLACE CONCRETE WALL 1/2" SEALANT & BACKER ROD ALL AROUND HSS TUBE BEAM, BOTH SIDES 1/2" 1/2" 5"
