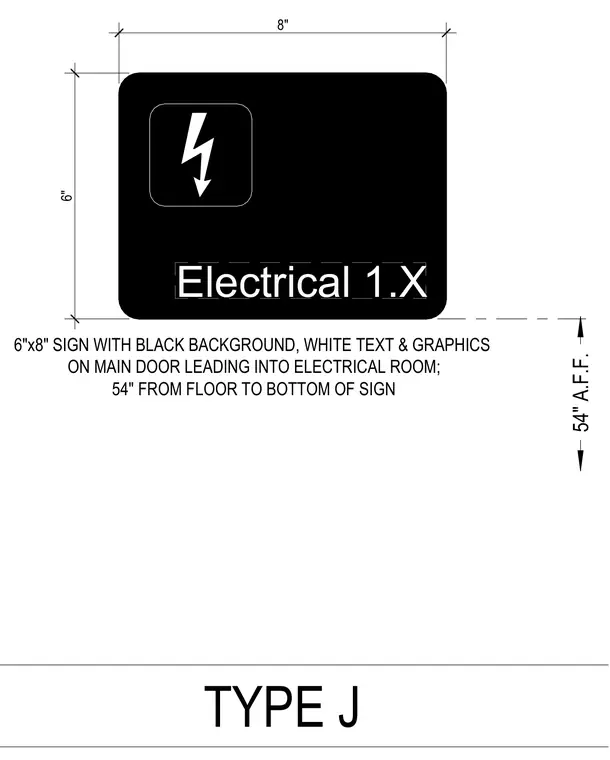

An eight-inch by six-inch sign with a black background and white text and graphics is mounted on the main door leading into the electrical room. The sign includes a lightning bolt graphic above the text and is positioned fifty-four inches above the finished floor to the bottom of the sign.
Electrical 1.X 6"x8" SIGN WITH BLACK BACKGROUND, WHITE TEXT & GRAPHICS ON MAIN DOOR LEADING INTO ELECTRICAL ROOM; 54" FROM FLOOR TO BOTTOM OF SIGN 6" 8" 54" A.F.F. TYPE J
