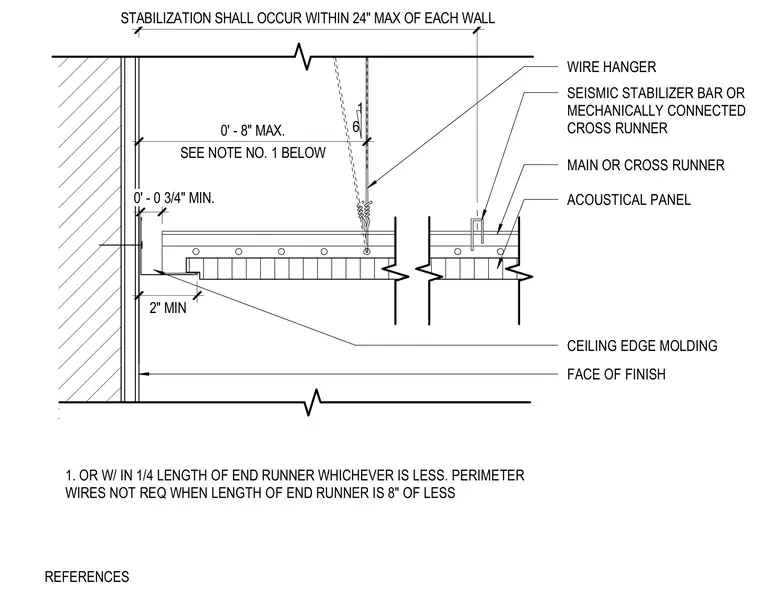

An acoustical panel ceiling terminates at an edge molding secured to the perimeter wall finish with a minimum three-quarter inch clearance. Main or cross runners are supported by vertical wire hangers, with perimeter stabilization occurring within twenty-four inches maximum of each wall. A seismic stabilizer bar or mechanically connected cross runner provides lateral support near the wall boundary. The end runner maintains an eight inch maximum distance from the wall or within one-quarter the length of the end runner, whichever is less. Perimeter wires are omitted when the end runner length is eight inches or less.
2" MIN 1. OR W/ IN 1/4 LENGTH OF END RUNNER WHICHEVER IS LESS. PERIMETER WIRES NOT REQ WHEN LENGTH OF END RUNNER IS 8" OF LESS 1 6 SEE NOTE NO. 1 BELOW 0' - 8" MAX. FACE OF FINISH STABILIZATION SHALL OCCUR WITHIN 24" MAX OF EACH WALL 0' - 0 3/4" MIN. SEISMIC STABILIZER BAR OR MECHANICALLY CONNECTED CROSS RUNNER REFERENCES WIRE HANGER ACOUSTICAL PANEL CEILING EDGE MOLDING MAIN OR CROSS RUNNER
