A shaftwall partition encloses ductwork with a maximum span of five feet four inches in either direction. The partition assembly ties into the surrounding structure with sealant applied at the perimeter joints.

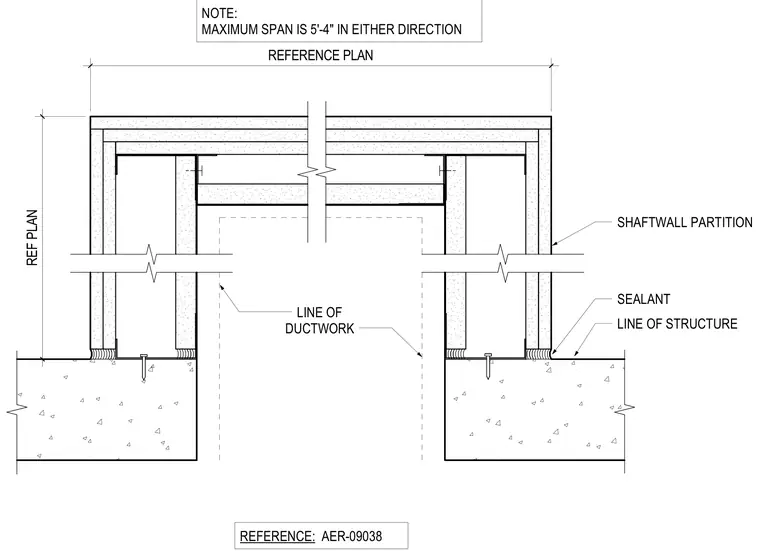

LINE OF DUCTWORK LINE OF STRUCTURE REFERENCE: AER-09038 REF PLAN SEALANT SHAFTWALL PARTITION REFERENCE PLAN NOTE: MAXIMUM SPAN IS 5'-4" IN EITHER DIRECTION
