A trash enclosure gate assembly consists of a 3 inch by 3 inch by 3/16 inch steel angle frame with mitered and welded corners on four sides. The gate is infilled with 18 gauge metal decking secured via tack welds at 9 inches on center along the top, bottom, and sides. Diagonal bracing is provided by a 2 inch by 2 inch by 3/16 inch steel tube. Hardware includes a lockable hasp secured with a 1/4 inch plate angle welded to the tube and angles at each end, alongside a 3/4 inch diameter cane bolt complete with a catch to hold it in the up position.

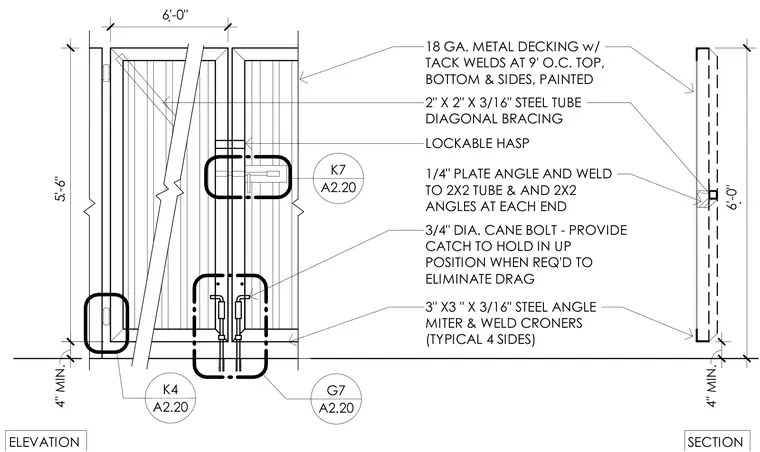

18 GA. METAL DECKING w/ TACK WELDS AT 9' O.C. TOP, BOTTOM & SIDES, PAINTED A2.20 G7 4" MIN. . 5'-6" 4" MIN. . 6'-0" . 6'-0" 2" X 2" X 3/16" STEEL TUBE DIAGONAL BRACING LOCKABLE HASP 1/4" PLATE ANGLE AND WELD TO 2X2 TUBE & AND 2X2 ANGLES AT EACH END 3/4" DIA. CANE BOLT - PROVIDE CATCH TO HOLD IN UP POSITION WHEN REQ'D TO ELIMINATE DRAG 3" X3 " X 3/16" STEEL ANGLE MITER & WELD CRONERS (TYPICAL 4 SIDES) A2.20 K7 ELEVATION SECTION A2.20 K4
