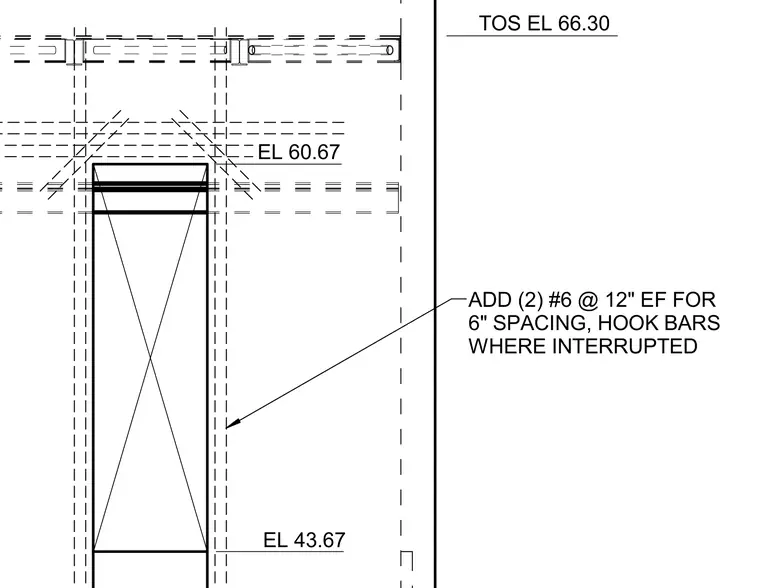

Additional two number six reinforcement bars spaced at twelve inches each face are provided for six inch spacing, with hook bars installed where interrupted. Elevation markers indicate top of steel levels at 66.30, 60.67, and 43.67.
TOS EL 60.67 EL 43.67 ADD (2) #6 @ 12" EF FOR 6" SPACING, HOOK BARS WHERE INTERRUPTED EL 66.30
