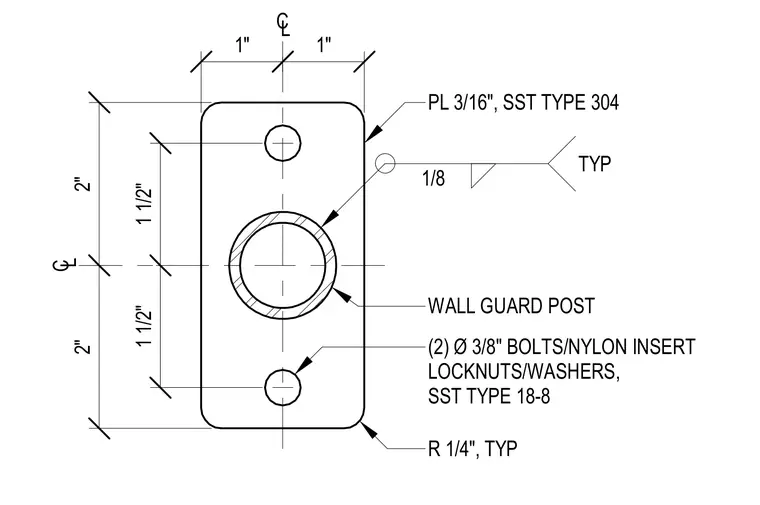

A three-sixteenths inch thick stainless steel Type 304 base plate secures a wall guard post with a one-eighth inch typical fillet weld. The plate features rounded corners with a one-quarter inch typical radius and is fastened using two three-eighths inch diameter bolts equipped with nylon insert locknuts and washers in Type 18-8 stainless steel.
1/8 TYP PL 3/16", SST TYPE 304 1" 1" 2" 2" C L C L 1 1/2" 1 1/2" WALL GUARD POST R 1/4", TYP (2) Ø 3/8" BOLTS/NYLON INSERT LOCKNUTS/WASHERS, SST TYPE 18-8
