A sixteen gauge hollow metal frame is cast directly into the concrete wall panel and painted. Welded T-anchors secure the frame to the surrounding concrete, with two anchors positioned at the head. An overhead rain drip, specified as Pemko 346 or equal, attaches at the exterior face above the door opening. The door itself is provided per schedule.

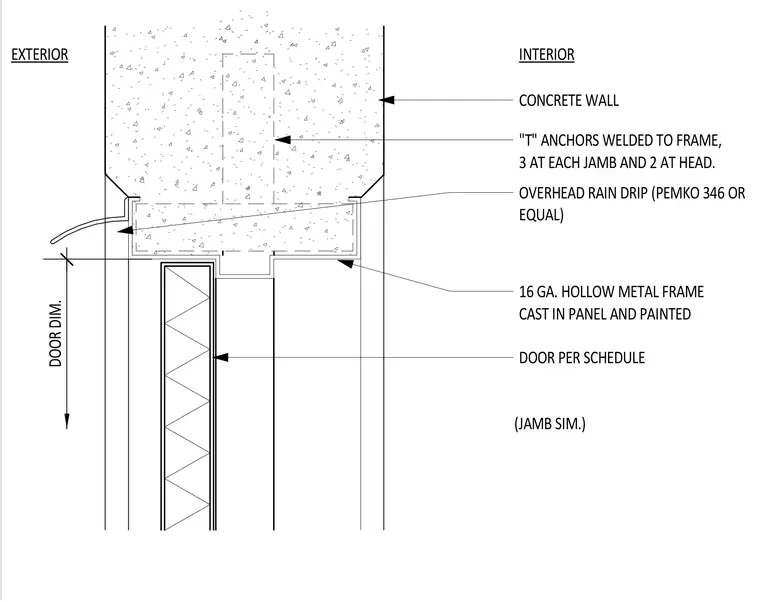

DOOR PER SCHEDULE 16 GA. HOLLOW METAL FRAME CAST IN PANEL AND PAINTED "T" ANCHORS WELDED TO FRAME, 3 AT EACH JAMB AND 2 AT HEAD. CONCRETE WALL EXTERIOR INTERIOR OVERHEAD RAIN DRIP (PEMKO 346 OR EQUAL) DOOR DIM. (JAMB SIM.)
