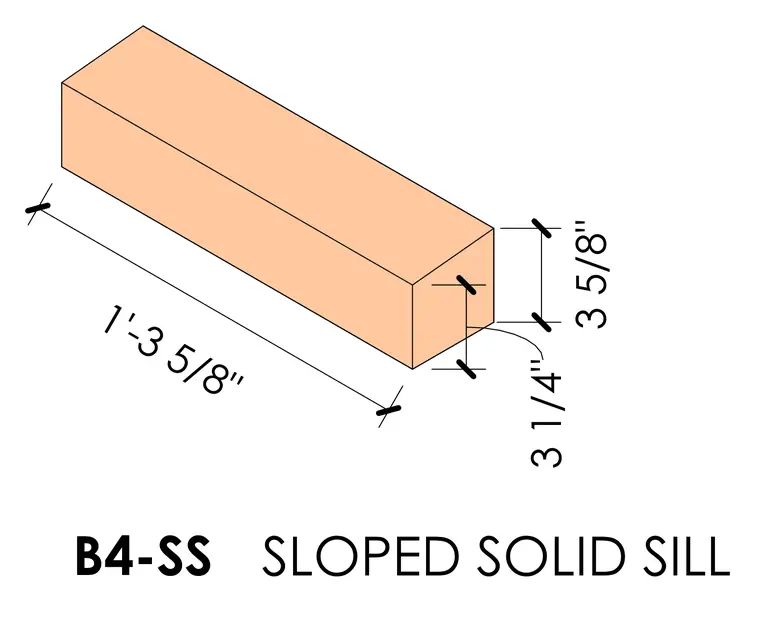

A sloped solid sill element is shown with overall dimensions including a length of one foot three and five-eighths inches, a height of three and five-eighths inches, and a depth of three and one-quarter inches.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
