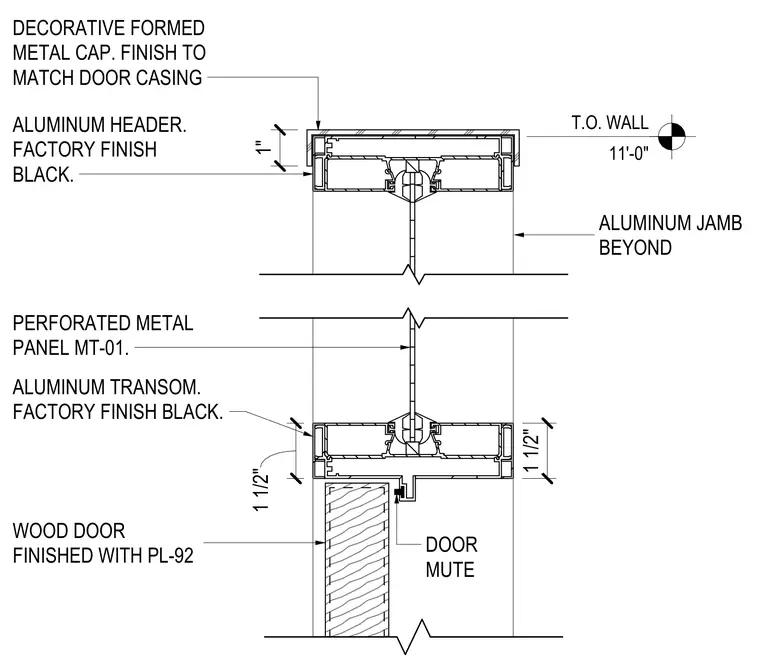

A wood door finished with laminate PL-92 meets an aluminum transom featuring a 1 1/2-inch profile and a factory black finish. A door mute is integrated at the stop, and an aluminum jamb extends beyond the opening. Above the transom sits a perforated metal panel designated MT-01. The assembly terminates at a 1-inch aluminum header with a decorative formed metal cap matching the door casing, set at a top-of-wall elevation of 11 feet.
WOOD DOOR FINISHED WITH PL-92 ALUMINUM TRANSOM. FACTORY FINISH BLACK. PERFORATED METAL PANEL MT-01. DOOR MUTE 1 1/2" 1 1/2" ALUMINUM HEADER. FACTORY FINISH BLACK. ALUMINUM JAMB BEYOND T.O. WALL 11'-0" DECORATIVE FORMED METAL CAP. FINISH TO MATCH DOOR CASING 1"
