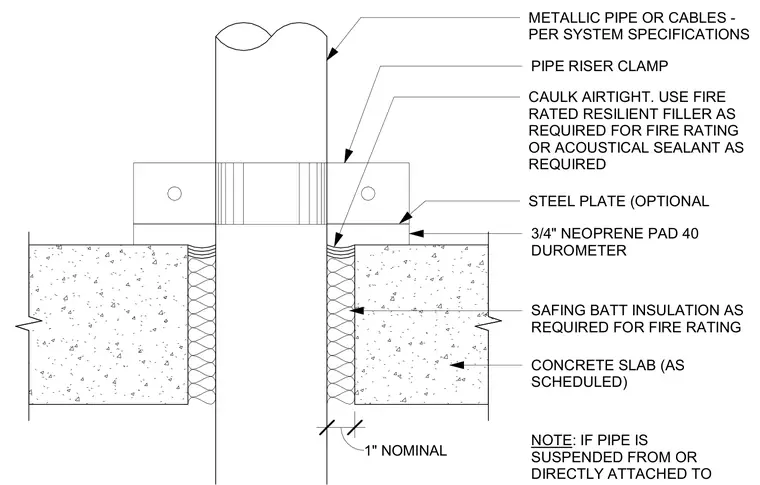

A metallic pipe or cable passes vertically through a concrete slab with a 1-inch nominal annular space. A pipe riser clamp bears on an optional steel plate resting on a 3/4-inch neoprene pad with a 40 durometer rating. The penetration is sealed airtight with fire-rated resilient filler or acoustical sealant as required. Safing batt insulation is packed within the slab opening as required for the specified fire rating. A note indicates special conditions if the pipe is suspended from or directly attached to the structure.
1" NOMINAL METALLIC PIPE OR CABLES - PER SYSTEM SPECIFICATIONS PIPE RISER CLAMP CAULK AIRTIGHT. USE FIRE RATED RESILIENT FILLER AS REQUIRED FOR FIRE RATING OR ACOUSTICAL SEALANT AS REQUIRED STEEL PLATE (OPTIONAL 3/4" NEOPRENE PAD 40 DUROMETER SAFING BATT INSULATION AS REQUIRED FOR FIRE RATING CONCRETE SLAB (AS SCHEDULED) NOTE: IF PIPE IS SUSPENDED FROM OR DIRECTLY ATTACHED TO
