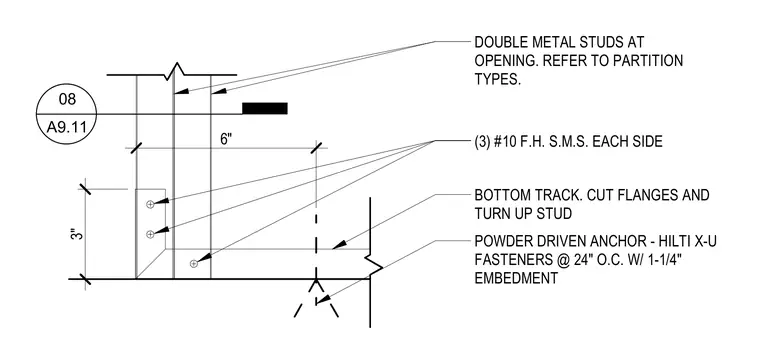

Double metal studs frame the opening with the bottom track modified by cutting the flanges and turning up the stud. Three number 10 flat head sheet metal screws secure each side of the connection. Powder-driven Hilti X-U fasteners anchor the assembly at twenty-four inches on center with a one-and-one-quarter-inch embedment.
6" 3" DOUBLE METAL STUDS AT OPENING. REFER TO PARTITION TYPES. (3) #10 F.H. S.M.S. EACH SIDE BOTTOM TRACK. CUT FLANGES AND TURN UP STUD POWDER DRIVEN ANCHOR - HILTI X-U FASTENERS @ 24" O.C. W/ 1-1/4" EMBEDMENT 08 A9.11
