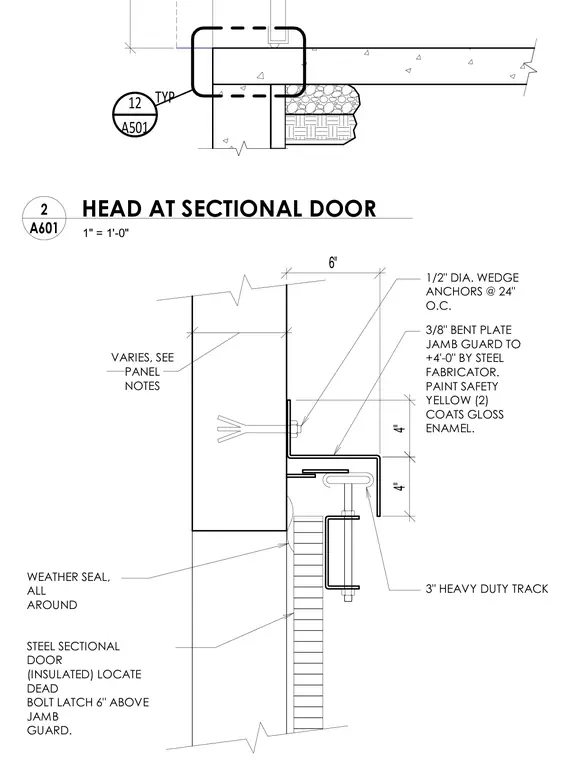

A three-eighths-inch bent plate jamb guard extends to plus four feet zero inches and is secured with one-half-inch diameter wedge anchors spaced at twenty-four inches on center. The guard is painted with two coats of safety yellow gloss enamel. A three-inch heavy-duty track supports the insulated steel sectional door, with a dead bolt latch positioned six inches above the jamb guard. Weather seal is provided all around the perimeter.
VARIES, SEE PANEL NOTES 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GUARD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND A501 12 TYP 1" = 1'-0" A601 2 HEAD AT SECTIONAL DOOR
