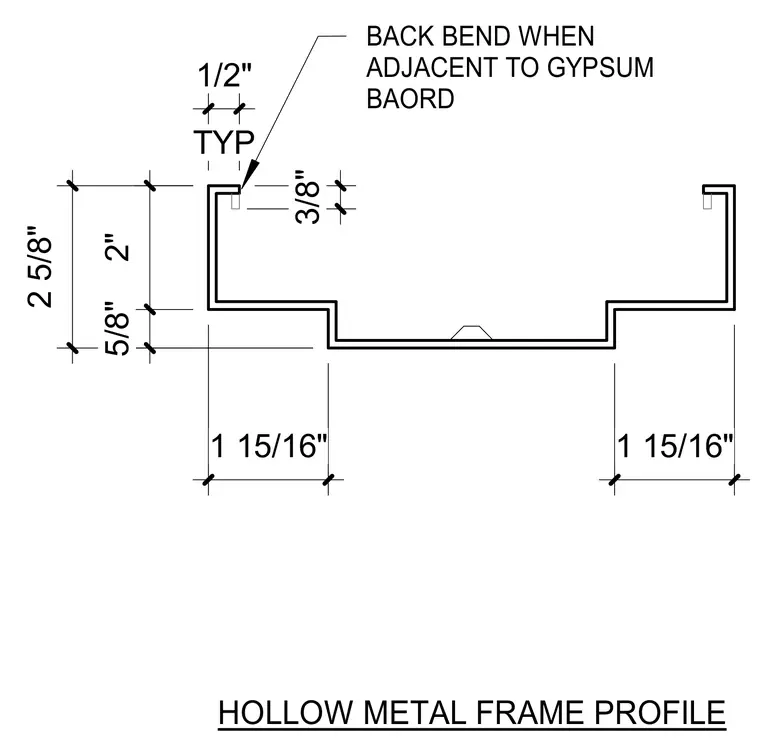

This architectural detail shows the dimensional profile of a hollow metal frame with a 2-5/8 inch overall depth. The profile includes a 3/8 inch back bend specified for use when adjacent to gypsum board, with a 1/2 inch typical dimension at the return. Face dimensions measure 1-15/16 inches across the rebate, with a 2 inch throat and a 5/8 inch offset.
2 5/8" 2" 5/8" HOLLOW METAL FRAME PROFILE TYP 1/2" 1 15/16" 1 15/16" 3/8" BACK BEND WHEN ADJACENT TO GYPSUM BAORD
