A-YD6GR — Recessed Ground Light Fixture in Grade with Metal Grate

Landscape · A-YD6GR

Recessed Ground Light Fixture in Grade with Metal Grate

Materials

Steel Metal (misc.)

Elements

Connections / Plates

About this detail

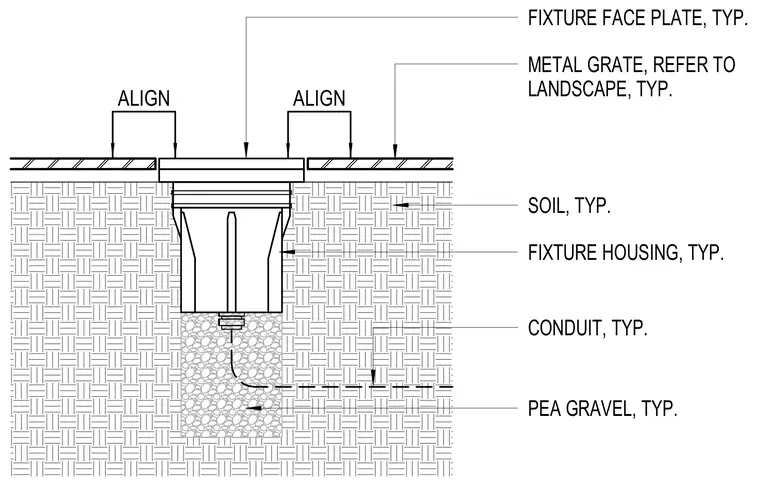

A typical recessed lighting fixture housing is embedded within a compacted bed of pea gravel surrounded by native soil. The fixture housing connects to an electrical conduit routed through the gravel base. A metal grate specified per landscape plans sits flush with the fixture face plate, aligned horizontally with the surrounding ground plane.

ALIGN ALIGN FIXTURE FACE PLATE, TYP. METAL GRATE, REFER TO LANDSCAPE, TYP. SOIL, TYP. FIXTURE HOUSING, TYP. CONDUIT, TYP. PEA GRAVEL, TYP.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
