An exterior handrail bracket assembly features a one and one-half inch outside diameter by zero point zero five zero inch thick three hundred sixteen stainless steel handrail pipe attached to a one-half inch outside diameter three hundred sixteen stainless steel handrail support pipe. The support pipe connects to a three inch diameter by one-quarter inch thick three hundred sixteen stainless steel escutcheon plate, finished to match the handrail. Three hundred sixteen stainless steel countersunk machine screws fasten the assembly. The centerline of the handrail is positioned two feet ten inches to the finished floor or tread nose, running parallel to the slope of the stair or ramp for inclined mounted handrails.

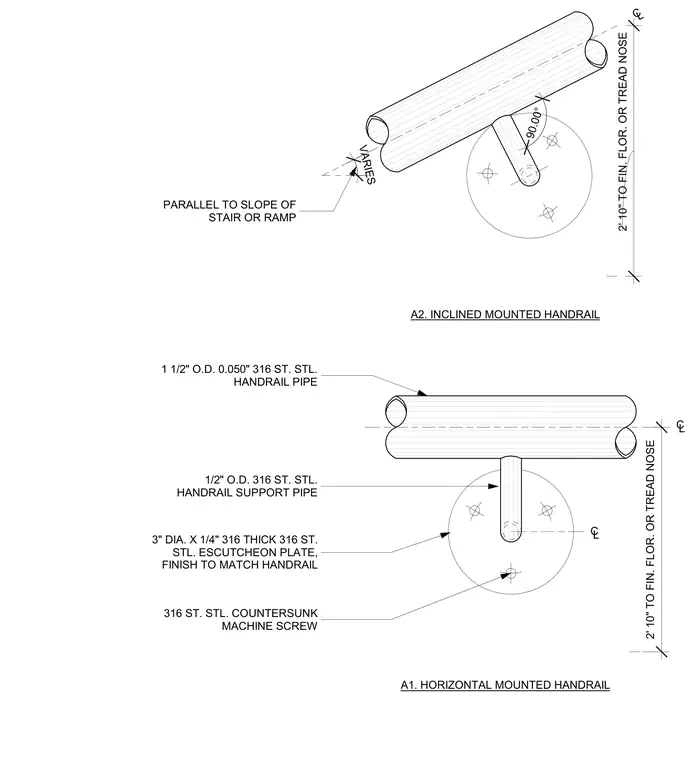

90.00° C L 2' 10" TO FIN. FLOR. OR TREAD NOSE VARIES PARALLEL TO SLOPE OF STAIR OR RAMP CL CL 2' 10" TO FIN. FLOR. OR TREAD NOSE A2. INCLINED MOUNTED HANDRAIL A1. HORIZONTAL MOUNTED HANDRAIL 1 1/2" O.D. 0.050" 316 ST. STL. HANDRAIL PIPE 1/2" O.D. 316 ST. STL. HANDRAIL SUPPORT PIPE 3" DIA. X 1/4" 316 THICK 316 ST. STL. ESCUTCHEON PLATE, FINISH TO MATCH HANDRAIL 316 ST. STL. COUNTERSUNK MACHINE SCREW
