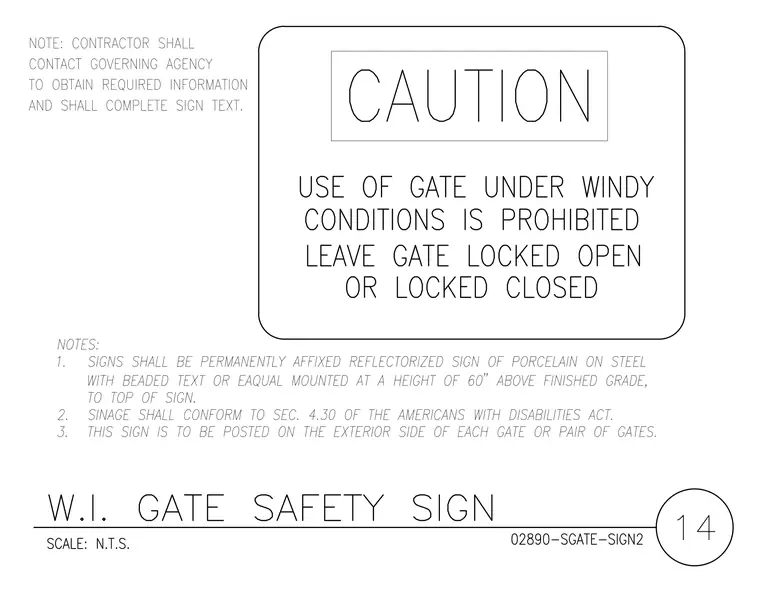

Wrought iron gate safety sign detailing caution instructions prohibiting gate use under windy conditions and requiring the gate to be locked open or closed. The sign requires a permanently affixed reflectorized porcelain on steel sign with beaded text mounted at a height of 60 inches above finished grade to the top of the sign. Signage shall conform to section 4.30 of the Americans with Disabilities Act and must be posted on the exterior side of each gate or pair of gates. The contractor shall contact the governing agency to obtain required information and shall complete the sign text.
