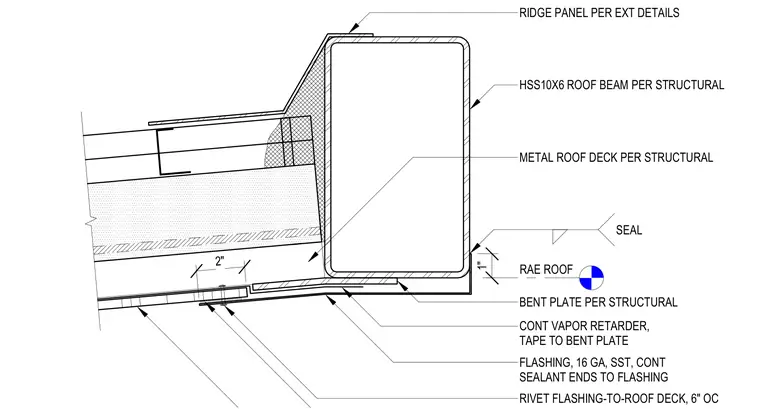

A hollow structural section HSS10x6 roof beam supports the metal roof deck at the high eave, with a bent plate located per structural specifications. A continuous vapor retarder is taped to the bent plate. A two-inch sixteen-gauge stainless steel flashing is riveted to the roof deck at six inches on center with continuous sealant applied at the ends. A ridge panel ties into the exterior assembly above.
RAE ROOF SEAL BENT PLATE PER STRUCTURAL 1" HSS10X6 ROOF BEAM PER STRUCTURAL METAL ROOF DECK PER STRUCTURAL CONT VAPOR RETARDER, TAPE TO BENT PLATE 2" FLASHING, 16 GA, SST, CONT SEALANT ENDS TO FLASHING RIVET FLASHING-TO-ROOF DECK, 6" OC RIDGE PANEL PER EXT DETAILS
