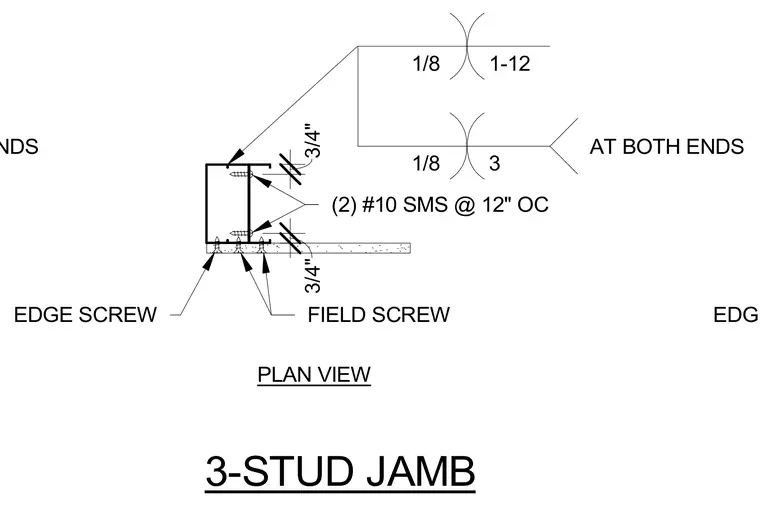

A three-stud jamb assembly is detailed in plan view with framing members connected using two number ten sheet metal screws at twelve inches on center. Gypsum board sheathing is fastened to the framing with edge screws and field screws spaced at three-quarter inch clearances. Dimension lines indicate edge distances at both ends of the assembly.
EDGE SCREW EDGE SCREW FIELD SCREW PLAN VIEW 3-STUD JAMB AT BOTH ENDS 1/8 3 AT BOTH ENDS (2) #10 SMS @ 12" OC 3/4" 1/8 1-12 3/4"
