Architectural · A-YC7M6

Half-Height Aluminum Door Jamb at Steel Stud Partition Hinge Side

Materials

Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)

Elements

Walls Doors Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

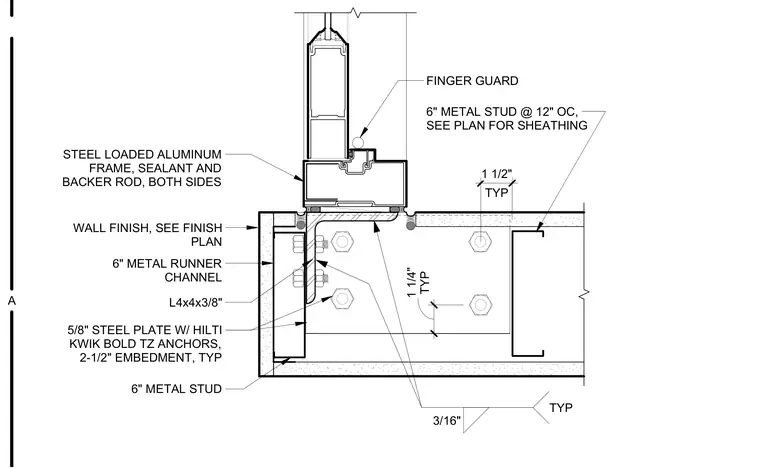

A steel loaded aluminum door frame sits atop a floor or half-height partition assembly framed with six-inch metal studs spaced at twelve inches on center. An L4x4x3/8 angle clip secures the frame, connected back to a five-eighths-inch steel plate anchored with Hilti Kwik Bolt TZ expansion anchors featuring two-and-a-half-inch embedment. Six-inch metal runner channels form the perimeter framing, and sealant with backer rod is applied to both sides of the frame. Wall finishes are specified per the finish plan, and a finger guard is integrated into the aluminum frame assembly.
