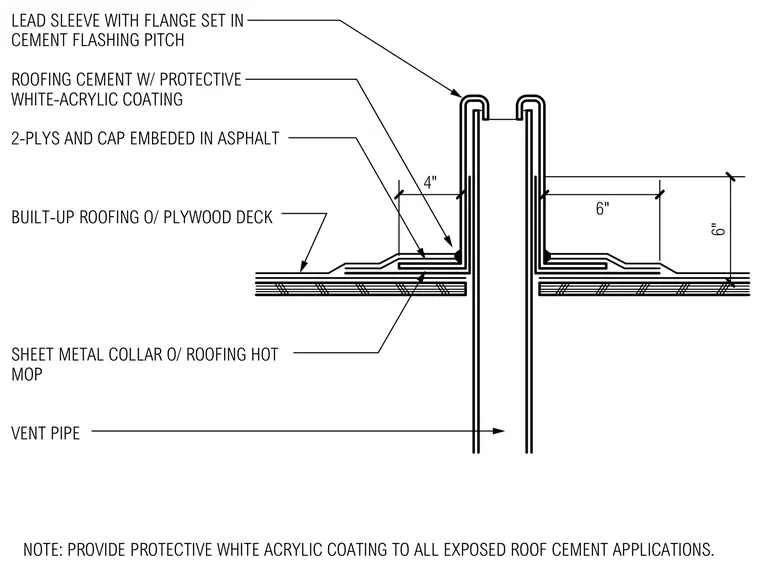

A four-inch vent pipe penetrates a plywood deck supporting a built-up roofing assembly. A lead sleeve with a flanged base is set in flashing pitch and roofing cement, with the flange embedded between two plies and a cap sheet in asphalt. A sheet metal collar is positioned over the roofing hot mop. All exposed roof cement applications receive a protective white-acrylic coating, extending four inches horizontally and six inches vertically from the pipe base.
LEAD SLEEVE WITH FLANGE SET IN CEMENT FLASHING PITCH ROOFING CEMENT W/ PROTECTIVE WHITE-ACRYLIC COATING 2-PLYS AND CAP EMBEDED IN ASPHALT BUILT-UP ROOFING O/ PLYWOOD DECK SHEET METAL COLLAR O/ ROOFING HOT MOP VENT PIPE 4" 6" 6" NOTE: PROVIDE PROTECTIVE WHITE ACRYLIC COATING TO ALL EXPOSED ROOF CEMENT APPLICATIONS.
