A one and one-half inch diameter steel pipe handrail and guardrail assembly incorporates welded joints ground smooth throughout. The top guardrail maintains a minimum height of three feet six inches, while the graspable handrail is positioned between thirty-four and thirty-eight inches above the walking surface. Handrail extensions at the top and bottom run parallel to the direction of travel, with extension dimensions measured prior to the handrail return.

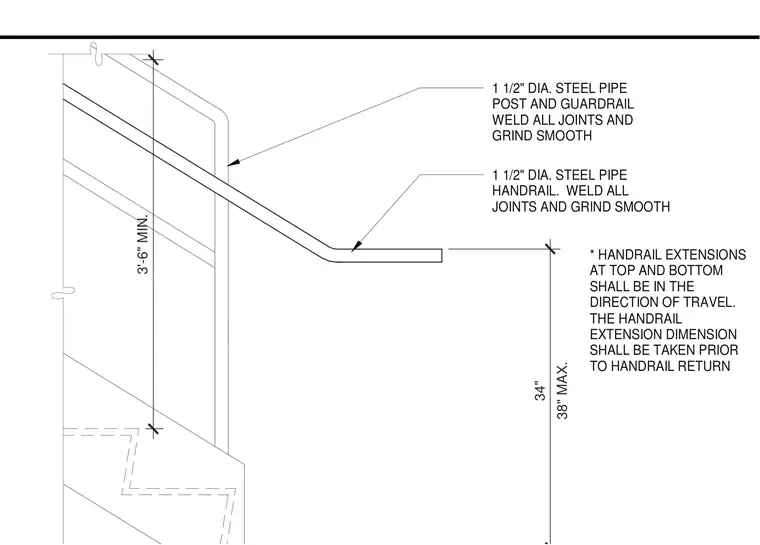

1 1/2" DIA. STEEL PIPE HANDRAIL. WELD ALL JOINTS AND GRIND SMOOTH 1 1/2" DIA. STEEL PIPE POST AND GUARDRAIL WELD ALL JOINTS AND GRIND SMOOTH 3'-6" MIN. 38" MAX. 34" * HANDRAIL EXTENSIONS AT TOP AND BOTTOM SHALL BE IN THE DIRECTION OF TRAVEL. THE HANDRAIL EXTENSION DIMENSION SHALL BE TAKEN PRIOR TO HANDRAIL RETURN
