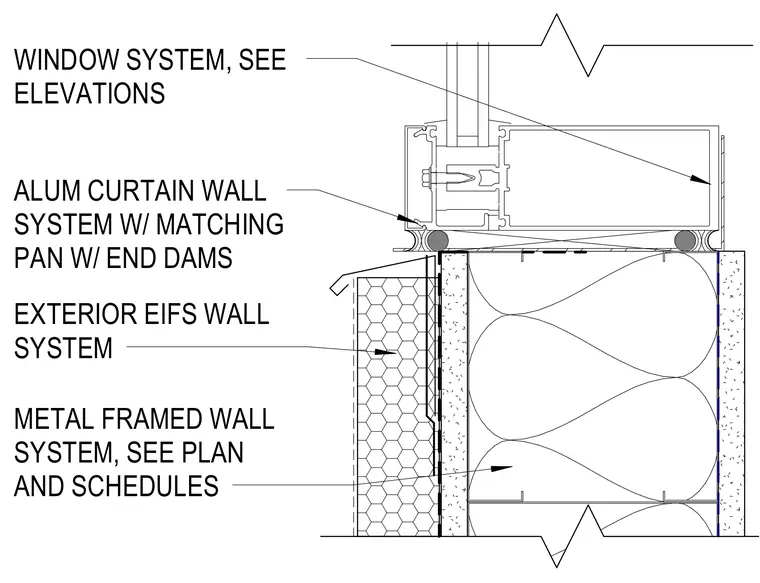

An aluminum window and curtain wall system with a matching pan and end dams sits atop an exterior EIFS wall system. The supporting structure consists of a metal framed wall system sized per plans and schedules.
ALUM CURTAIN WALL SYSTEM W/ MATCHING PAN W/ END DAMS WINDOW SYSTEM, SEE ELEVATIONS EXTERIOR EIFS WALL SYSTEM METAL FRAMED WALL SYSTEM, SEE PLAN AND SCHEDULES
