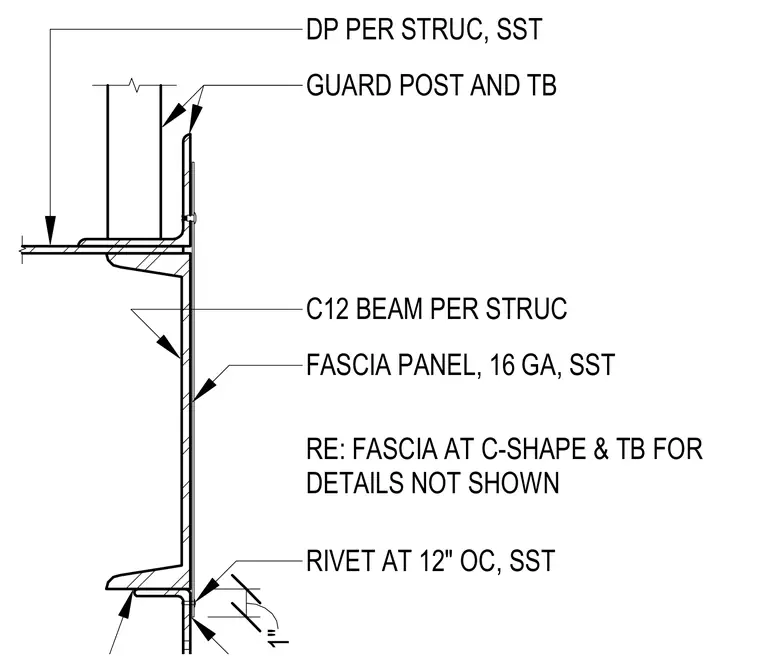

A sixteen-gauge stainless steel fascia panel is secured to a structural C12 channel beam using stainless steel rivets spaced at twelve inches on center with a one-inch edge clearance. A structural deck plate and guard post assembly bear atop the structural channel. Additional fascia conditions at C-shape members and toe boards are referenced for conditions not shown.
FASCIA PANEL, 16 GA, SST C12 BEAM PER STRUC GUARD POST AND TB DP PER STRUC, SST RE: FASCIA AT C-SHAPE & TB FOR DETAILS NOT SHOWN RIVET AT 12" OC, SST 1"
