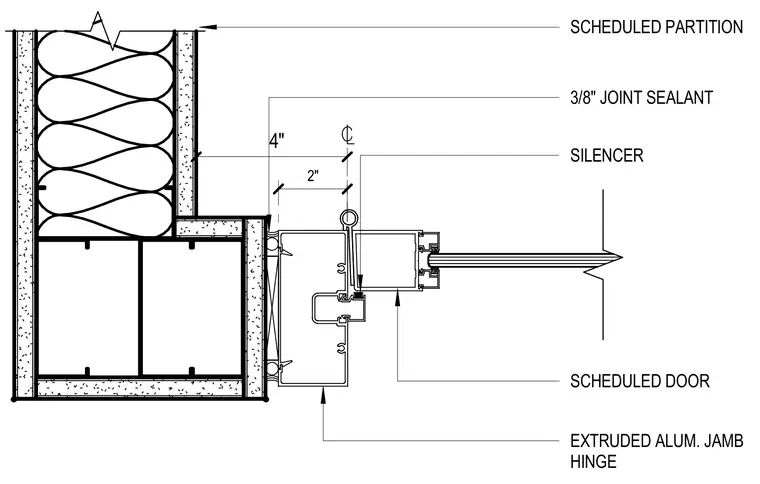

An extruded aluminum jamb hinge connects to a scheduled door on one side and a scheduled partition on the other. A three-eighths-inch joint sealant is applied between the aluminum frame and the adjacent construction. A partition silencer is positioned along the stop of the frame. Dimensions indicate a two-inch and four-inch offset from the centerline of the hinge.
SCHEDULED DOOR EXTRUDED ALUM. JAMB HINGE SCHEDULED PARTITION SILENCER 2" 3/8" JOINT SEALANT 4"
