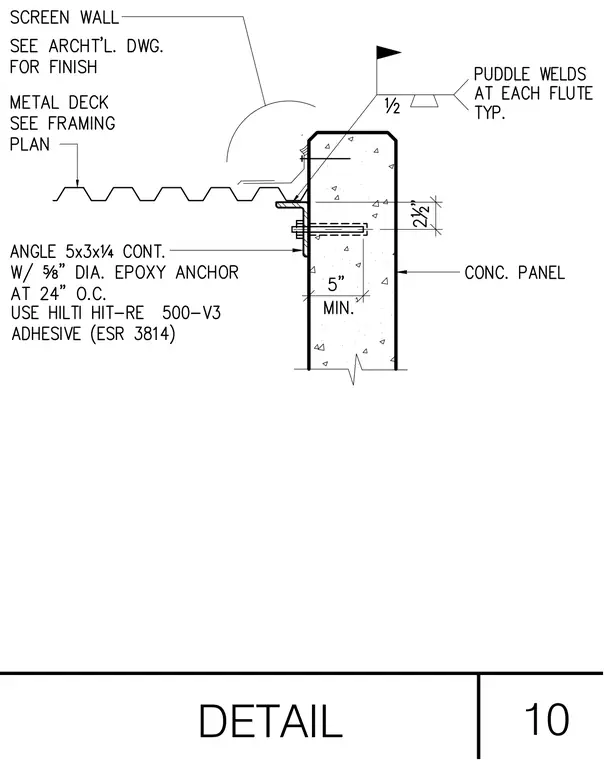

A continuous angle measuring 5 by 3 by 1/4 inches anchors to a concrete panel using 5/8-inch diameter epoxy anchors at 24 inches on center, specified with Hilti HIT-RE 500-V3 adhesive under ESR 3814. The metal deck bears on the continuous angle and attaches with puddle welds at each flute typical. A screen wall assembly finishes against the top of the concrete panel with a minimum thickness of 5 inches.
