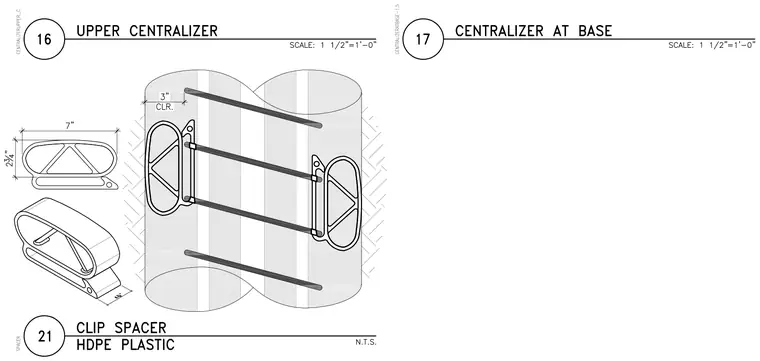

An upper centralizer and base centralizer assembly installed on vertical reinforcing steel bars within a concrete element, maintaining a three-inch clear cover. The assembly utilizes high-density polyethylene plastic clip spacers measuring seven inches wide by two and three-quarters inches high, with a six-inch dimension indicating depth. The clip spacers attach horizontally across parallel rebar elements to maintain proper bar positioning and concrete cover during pouring.
