Partition Type 'F'

Materials

Concrete Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Roofs Ceilings Floors / Slabs Decks Insulation Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

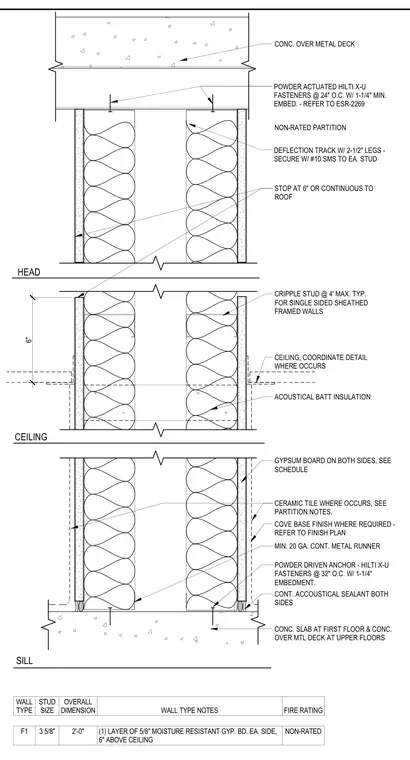

Head, ceiling, and sill assembly for a non-rated partition type F featuring metal stud framing and gypsum board on both sides. At the head, a deflection track with 2-1/2 inch legs is secured to the concrete over metal deck using powder-actuated fasteners spaced at 24 inches on center with 1-1/4 inch minimum embedment. The partition wall incorporates acoustical batt insulation between studs, with cripple studs at 4 feet maximum typical for single-sided sheathed framed walls. The base plate uses a minimum 20 gauge continuous metal runner fastened to the concrete slab or concrete over metal deck with powder-driven anchors spaced at 32 inches on center with 1-1/4 inch embedment. Continuous acoustical sealant is applied to both sides at the sill, and optional ceramic tile and cove base finishes are integrated per partition notes and finish plans.
