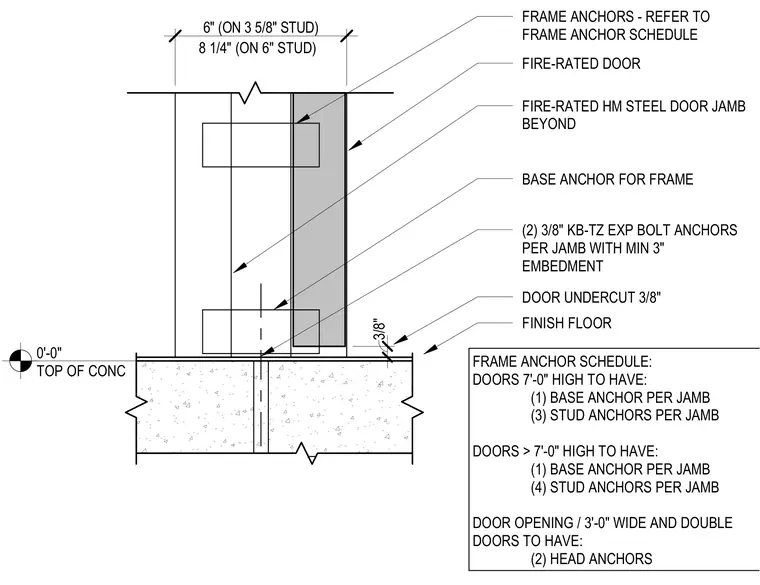

A fire-rated hollow metal steel door jamb and sill is anchored to a concrete slab. The base anchor for the frame uses two three-eighths-inch KB-TZ expansion bolt anchors per jamb with a minimum three-inch embedment. The finish floor sits at zero-zero top of concrete with a three-eighths-inch door undercut. Frame anchors are detailed per the accompanying schedule based on door height and width.
FRAME ANCHORS - REFER TO FRAME ANCHOR SCHEDULE FIRE-RATED DOOR FIRE-RATED HM STEEL DOOR JAMB BEYOND BASE ANCHOR FOR FRAME (2) 3/8" KB-TZ EXP BOLT ANCHORS PER JAMB WITH MIN 3" EMBEDMENT FINISH FLOOR DOOR UNDERCUT 3/8" FRAME ANCHOR SCHEDULE: DOORS 7'-0" HIGH TO HAVE: (1) BASE ANCHOR PER JAMB (3) STUD ANCHORS PER JAMB DOORS > 7'-0" HIGH TO HAVE: (1) BASE ANCHOR PER JAMB (4) STUD ANCHORS PER JAMB DOOR OPENING / 3'-0" WIDE AND DOUBLE DOORS TO HAVE: (2) HEAD ANCHORS 6" (ON 3 5/8" STUD) 0'-0" TOP OF CONC 3/8" 8 1/4" (ON 6" STUD)
