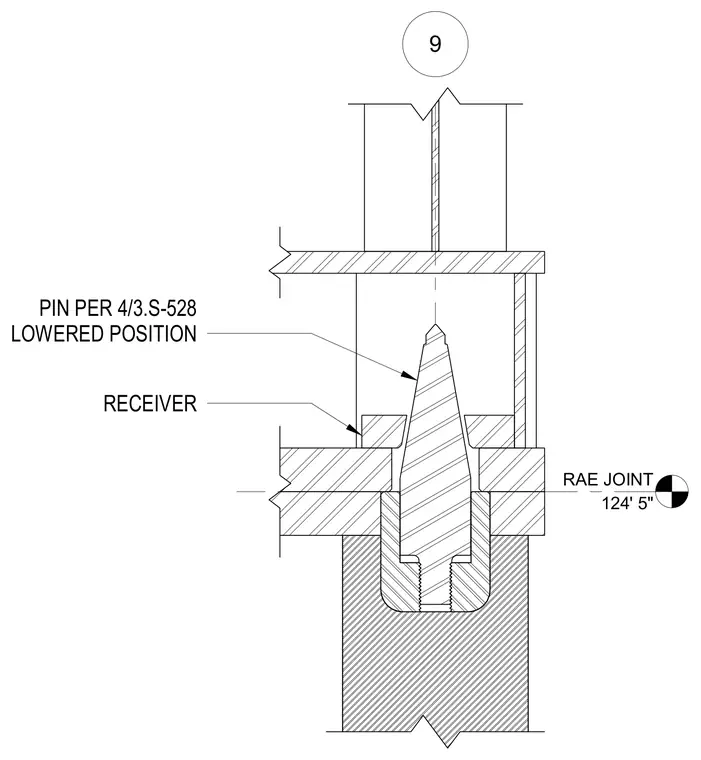

The assembly features a pin per detail 4 on sheet S-528 positioned in a lowered state engaging a receiver. The alignment pin seats into the receiver plate anchored at elevation 124 feet 5 inches.
