Architectural · A-YB78T

Island Cabinet Elevation with Solid Surface Countertop

Materials

Elements

Doors Floors / Slabs Millwork / Casework

About this detail

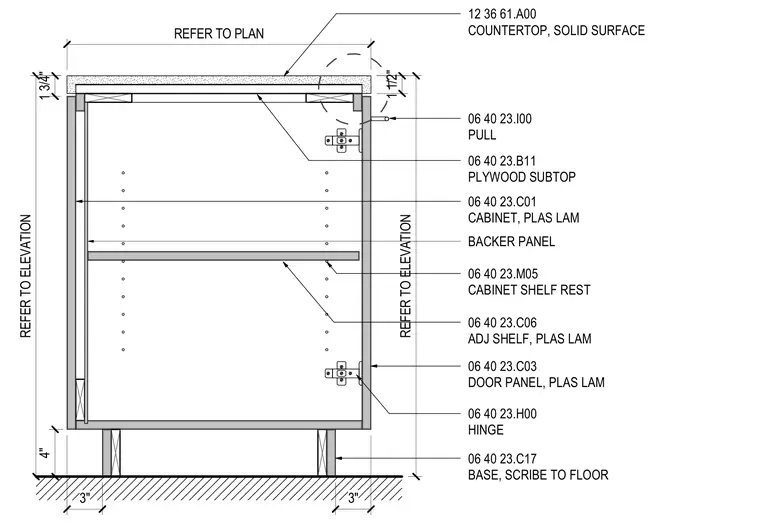

An island cabinet assembly features a solid surface countertop supported by a plywood subtop over a plastic laminate cabinet body. The plastic laminate door panel is secured with concealed hinges and a pull, enclosing an adjustable plastic laminate shelf supported by cabinet shelf rests. A backer panel forms the cabinet rear, and the entire unit rests on a four-inch high base scribed to the floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
