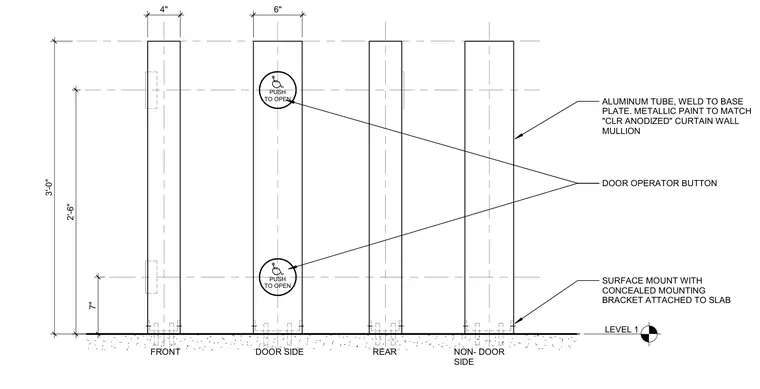

An aluminum tube bollard mounts to the floor slab at Level 1 via a concealed mounting bracket and base plate connection. The bollard has a four-inch by six-inch profile standing three feet tall, featuring integrated push-to-open door operator buttons at seven inches and two feet six inches above the finished floor. The exterior is finished with a metallic paint matching clear anodized curtain wall mullions.
6" 4" FRONT DOOR SIDE REAR NON- DOOR SIDE ALUMINUM TUBE, WELD TO BASE PLATE. METALLIC PAINT TO MATCH "CLR ANODIZED" CURTAIN WALL MULLION DOOR OPERATOR BUTTON PUSH TO OPEN PUSH TO OPEN LEVEL 1 7" 2'-6" 3'-0" SURFACE MOUNT WITH CONCEALED MOUNTING BRACKET ATTACHED TO SLAB
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
