A-YAK2A — EW9

Architectural · A-YAK2A

EW9

Units: imperial
Sheet: A6.01
Discipline: Architectural

Materials

Cold-formed Steel Gypsum / Drywall Metal (misc.)Timber / Wood

Elements

Facades / Cladding Insulation Walls Waterproofing / Flashing

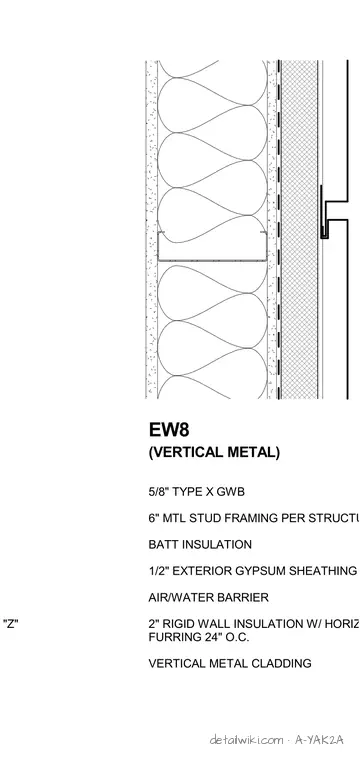

Text on the drawing

2" RIGID WALL INSULATION W/ HORIZONTAL "Z" EW8 5/8" TYPE X GWB 6" MTL STUD FRAMING PER STRUCTURAL BATT INSULATION 1/2" EXTERIOR GYPSUM SHEATHING AIR/WATER BARRIER 2" RIGID WALL INSULATION W/ HORIZONTAL "Z" FURRING 24" O.C. VERTICAL METAL CLADDING (VERTICAL METAL)

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
