A continuous twenty-gauge minimum three-inch deep leg deflection track connects to a continuous twenty-gauge formed z-clip with two-inch legs at sixteen inches on center maximum, which attaches to the supporting steel beam. The gypsum board and studs remain unattached to the deflection track in this designated area to allow vertical movement, utilizing a continuous two-inch wide by twenty-gauge metal strap attached to the gypsum board at eight inches on center maximum. Mineral wool insulation fills the gap between the sprayed fire-resistive material and the top of the wall, supplemented by spray-applied firestop material on each side with a minimum half-inch overlap at the gypsum board and deck. Sprayed fire-resistive material coats the structural steel beam, fills the flutes above the beams, and covers the supporting bent steel plates welded to the beam flange at four feet on center alternating each side.

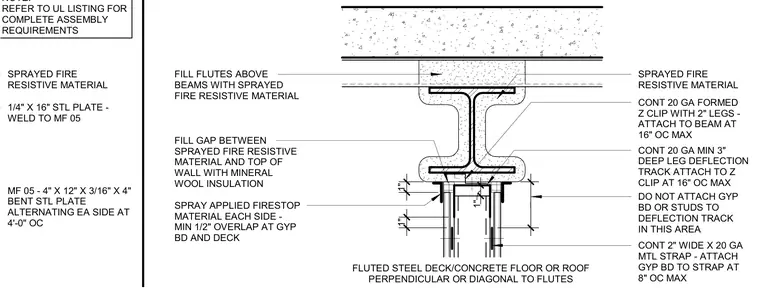

1" CONT 2" WIDE X 20 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA CONT 20 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO Z CLIP AT 16" OC MAX CONT 20 GA FORMED Z CLIP WITH 2" LEGS - ATTACH TO BEAM AT 16" OC MAX SPRAYED FIRE RESISTIVE MATERIAL SPRAY APPLIED FIRESTOP MATERIAL EACH SIDE - MIN 1/2" OVERLAP AT GYP BD AND DECK FILL GAP BETWEEN SPRAYED FIRE RESISTIVE MATERIAL AND TOP OF WALL WITH MINERAL WOOL INSULATION FILL FLUTES ABOVE BEAMS WITH SPRAYED FIRE RESISTIVE MATERIAL FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PERPENDICULAR OR DIAGONAL TO FLUTES 1" 1" _ MF 05 - 4" X 12" X 3/16" X 4" BENT STL PLATE ALTERNATING EA SIDE AT 4'-0" OC 1/4" X 16" STL PLATE - WELD TO MF 05 SPRAYED FIRE RESISTIVE MATERIAL NOTE: REFER TO UL LISTING FOR COMPLETE ASSEMBLY REQUIREMENTS
