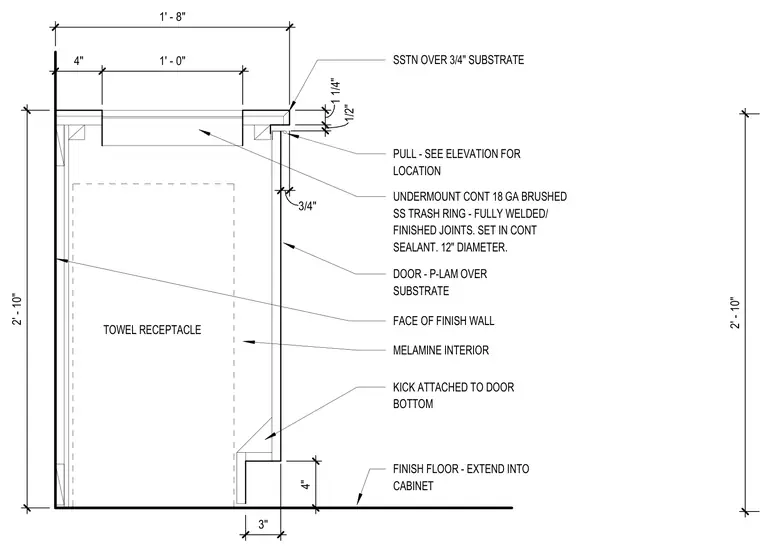

This built-in millwork assembly consists of a cabinet housing a towel receptacle with a melamine interior and a plastic-laminate over substrate door equipped with a bottom kick plate and a pull. The top surface features a stainless-steel finish over a three-quarter-inch substrate, incorporating a twelve-inch diameter undermount continuous eighteen-gauge brushed stainless-steel trash ring with fully welded and finished joints set in continuous sealant. The entire unit measures two feet ten inches in height by one foot eight inches in depth, positioned adjacent to the finish wall and finish floor extending into the cabinet.
S S T N O V E R 3 / 4 " S U B S T R A T E F I N I S H F L O O R - E X T E N D I N T O C A B I N E T D O O R - P - L A M O V E R S U B S T R A T E F A C E O F F I N I S H W A L L M E L A M I N E I N T E R I O R 2 ' - 1 0 " T O W E L R E C E P T A C L E 3 " K I C K A T T A C H E D T O D O O R B O T T O M P U L L - S E E E L E V A T I O N F O R L O C A T I O N U N D E R M O U N T C O N T 1 8 G A B R U S H E D S S T R A S H R I N G - F U L L Y W E L D E D / F I N I S H E D J O I N T S . S E T I N C O N T S E A L A N T . 1 2 " D I A M E T E R . 4 " 1 / 2 "1 1 / 4 " 1 ' - 8 " 1 ' - 0 " 4 " 3 / 4 " 2 ' - 1 0 "
