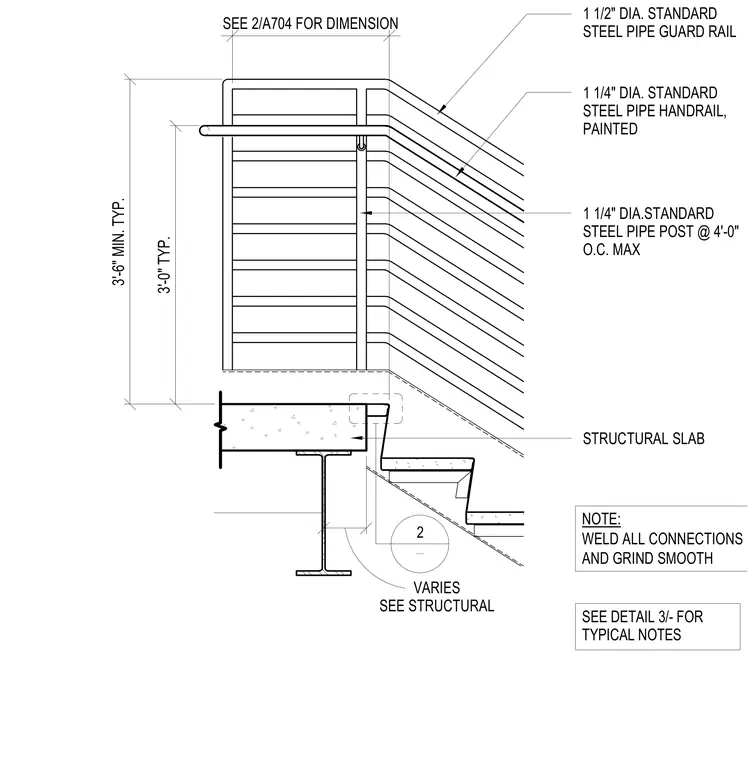

A steel pipe guardrail and handrail assembly mounts at a structural concrete stair landing. The guardrail utilizes 1-1/2-inch diameter standard steel pipes, paired with a painted 1-1/4-inch diameter handrail positioned 3 feet above the landing. Vertical 1-1/4-inch diameter steel posts are spaced at a maximum of 4 feet on center. All connections are fully welded and ground smooth per project notes. The assembly anchors to the structural slab and stair framing, with dimensions and attachment details coordinated with structural drawings.
3'-6" MIN. TYP. VARIES SEE STRUCTURAL 3'-0" TYP. SEE 2/A704 FOR DIMENSION 2 - STRUCTURAL SLAB 1 1/2" DIA. STANDARD STEEL PIPE GUARD RAIL 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL, PAINTED SEE DETAIL 3/- FOR TYPICAL NOTES NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH 1 1/4" DIA.STANDARD STEEL PIPE POST @ 4'-0" O.C. MAX
