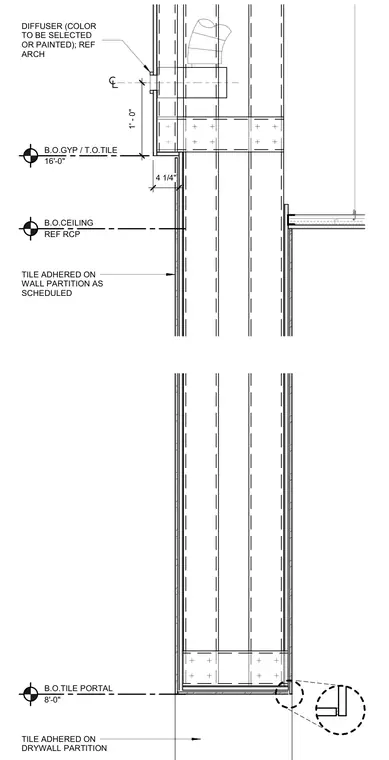

This interior wall detail coordinates tile finishes on a gypsum wall partition with mechanical diffuser placement and ceiling heights. The assembly features tile adhered directly to the drywall partition up to a bottom-of-tile portal height of 8'-0". Higher up, the wall transitions to bottom-of-gypsum and top-of-tile elevations at 16'-0", accommodating an air diffuser positioned one foot above the transition. A referenced reflected ceiling plan establishes the bottom-of-ceiling elevation.
B.O.GYP / T.O.TILE 16'-0" TILE ADHERED ON WALL PARTITION AS SCHEDULED DIFFUSER (COLOR TO BE SELECTED OR PAINTED); REF ARCH B.O.TILE PORTAL 8'-0" TILE ADHERED ON DRYWALL PARTITION B.O.CEILING REF RCP 1' - 0" 4 1/4"
