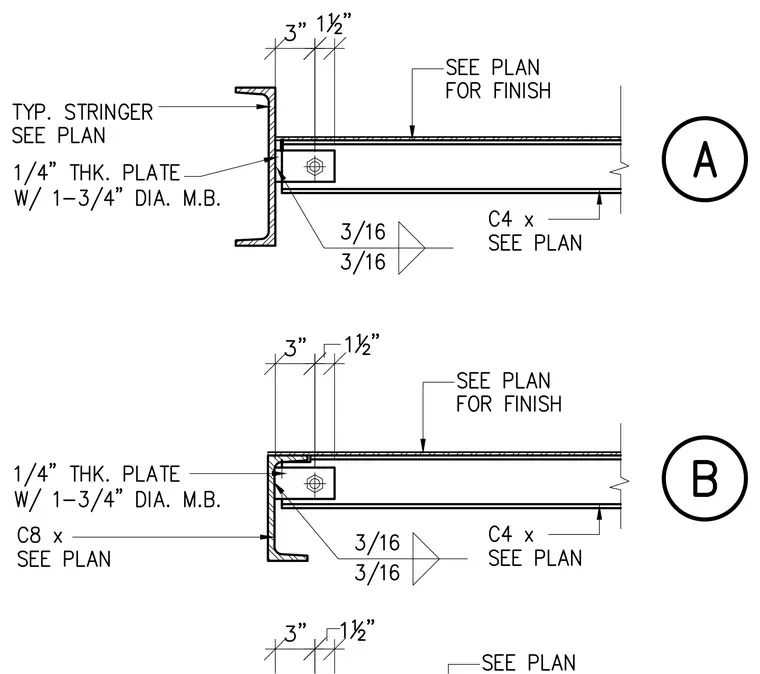

The typical stair stringer connects to a structural channel support using a quarter-inch thick steel plate welded with three-sixteenth-inch fillet welds and secured by a three-quarter-inch diameter machine bolt. The assembly features a C4 channel stringer with dimensions sized per plan and includes specified finishes applied to the top surface. Detail A utilizes a typical stringer condition while Detail B incorporates an C8 channel support member.
