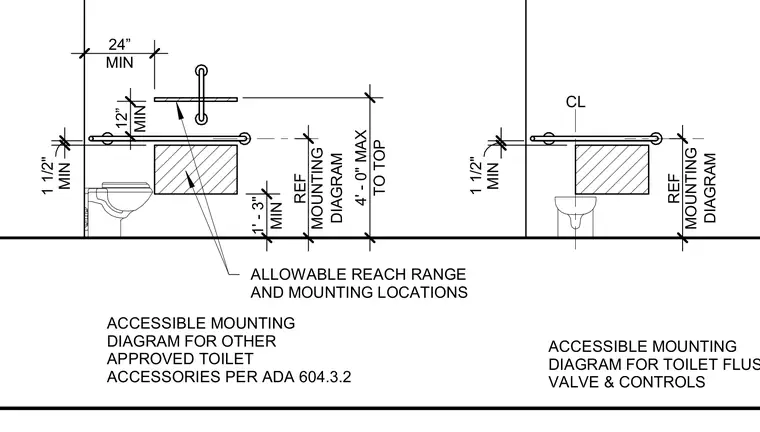

Accessible mounting heights and reach ranges are detailed for toilet accessories and flush valve controls per ADA guidelines. Minimum clearances of one and one-half inches are maintained around grab bars and accessories, with a maximum top mounting height of four feet. Allowable reach ranges indicate minimum dimensions of one foot three inches from the floor, twelve inches, and twenty-four inches from partitions.
MIN 1' - 3" DIAGRAM REF MOUNTING TO TOP 4' - 0" MAX MIN 1 1/2" MIN 12” MIN 24” ACCESSIBLE MOUNTING DIAGRAM FOR OTHER APPROVED TOILET ACCESSORIES PER ADA 604.3.2 ALLOWABLE REACH RANGE AND MOUNTING LOCATIONS RANGE AND MOUNTING MIN 1 1/2" DIAGRAM REF MOUNTING ACCESSIBLE MOUNTING DIAGRAM FOR TOILET FLUSH VALVE & CONTROLS CL
