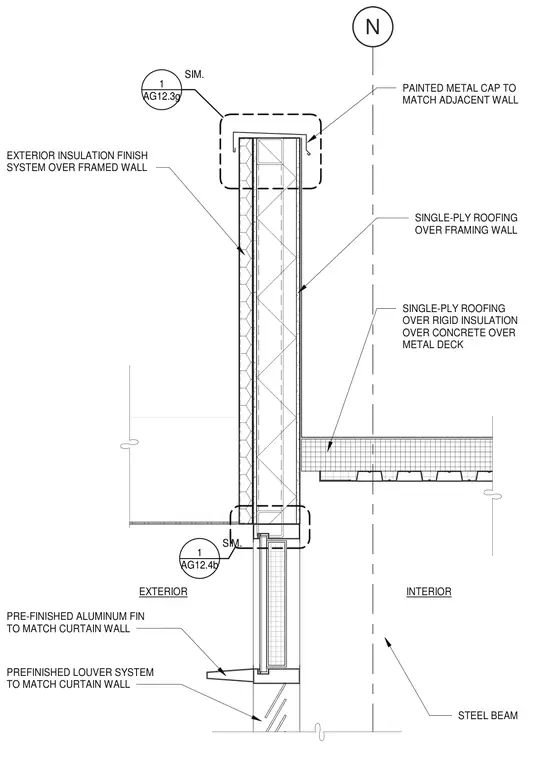

A parapet and screen wall assembly intersects with a roof deck and exterior wall system. The top of the wall is finished with a painted metal cap matching the adjacent wall. The exterior face features an exterior insulation finish system over framed walls, transitioning below to a pre-finished aluminum fin and a pre-finished louver system matching the adjacent curtain wall. The roof assembly consists of single-ply roofing over rigid insulation, concrete, and metal deck supported by a steel beam.
N INTERIOR EXTERIOR EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL AG12.4b 1 SIM. SINGLE-PLY ROOFING OVER RIGID INSULATION OVER CONCRETE OVER METAL DECK STEEL BEAM SINGLE-PLY ROOFING OVER FRAMING WALL PAINTED METAL CAP TO MATCH ADJACENT WALL PREFINISHED LOUVER SYSTEM TO MATCH CURTAIN WALL PRE-FINISHED ALUMINUM FIN TO MATCH CURTAIN WALL AG12.3g 1 SIM.
