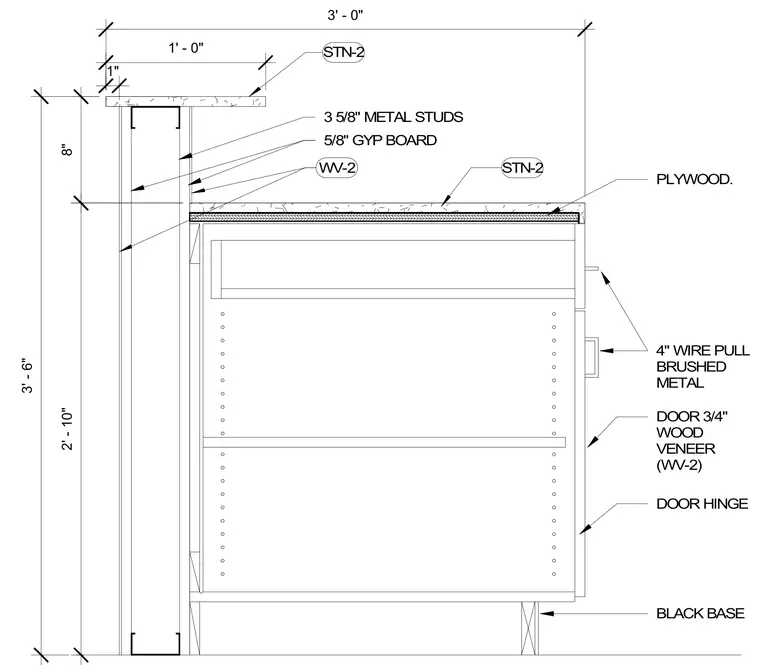

A custom reception counter is constructed with three and five-eighths inch metal studs faced with five-eighths inch gypsum board. The main transaction counter features a plywood substrate supporting a stone top designated as STN-2. A lower transaction tier is also finished with the same stone material. The cabinetry casework includes three-quarter inch wood veneer doors labeled as WV-2, equipped with door hinges, a black base, and four-inch brushed metal wire pulls.
3' - 6" STN-2 STN-2 WV-2 1' - 0" 3' - 0" PLYWOOD. 2' - 10" 8" 4" WIRE PULL BRUSHED METAL BLACK BASE DOOR HINGE DOOR 3/4" WOOD VENEER (WV-2) 5/8" GYP BOARD 3 5/8" METAL STUDS 1"
