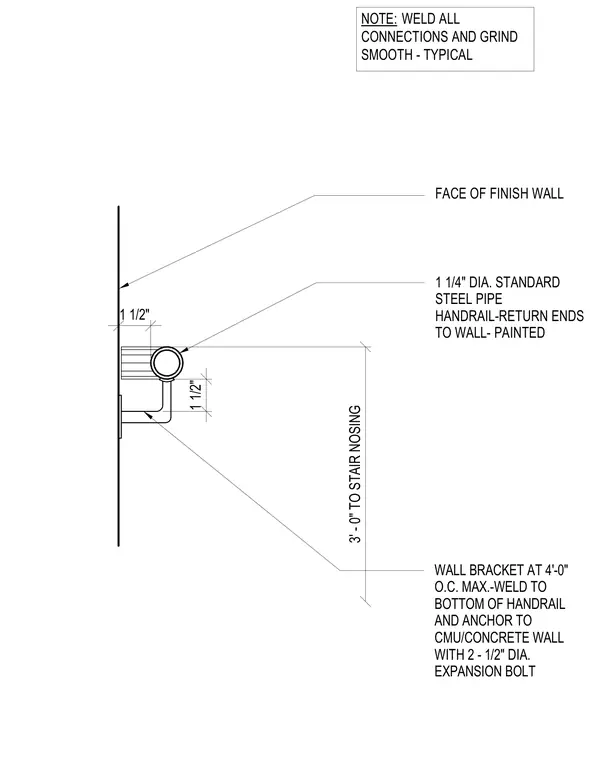

A one-and-one-quarter-inch-diameter standard steel pipe handrail mounts to a concrete or concrete masonry unit wall using painted wall brackets spaced at a maximum of four feet on center. The bracket welds to the bottom of the handrail and anchors to the structural wall with two one-half-inch-diameter expansion bolts. All connections are welded and ground smooth.
1 1/2" 3' - 0" TO STAIR NOSING 1 1/2" FACE OF FINISH WALL 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL-RETURN ENDS TO WALL- PAINTED WALL BRACKET AT 4'-0" O.C. MAX.-WELD TO BOTTOM OF HANDRAIL AND ANCHOR TO CMU/CONCRETE WALL WITH 2 - 1/2" DIA. EXPANSION BOLT NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH - TYPICAL
