Architectural · A-Y8GXP

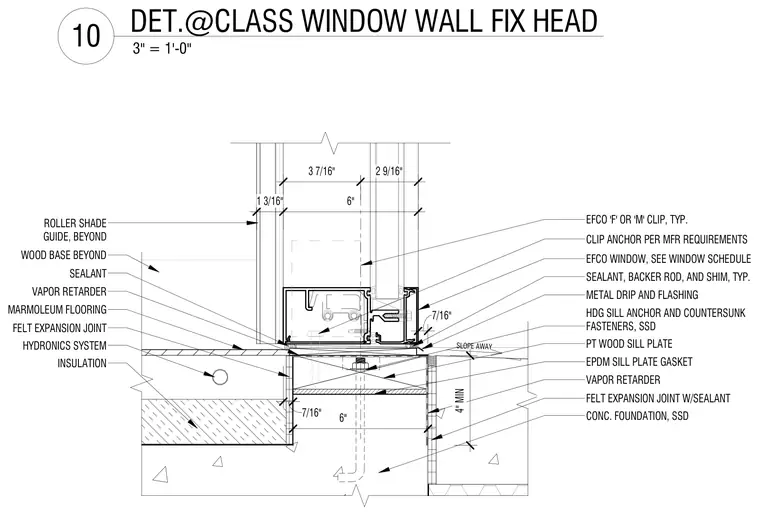

Classroom Window Wall Fixed Head Detail

Materials

Concrete Steel Timber / Wood Metal (misc.)Membrane / Roofing

Elements

Walls Windows Curtain Walls Floors / Slabs Foundations / Footings Expansion / Control Joints Waterproofing / Flashing Insulation Anchors / Embeds Connections / Plates

Connections

Expansion / Slip Connection

About this detail

An Efco fixed window unit is mounted above a pressure-treated wood sill plate that rests on a concrete foundation with an intervening EPDM sill plate gasket and vapor retarder. The window head assembly is secured using typical hot-dipped galvanized sill anchors with countersunk fasteners and manufacturer-specified clip anchors, with sealant, backer rod, and shims applied at the joints. A metal drip and flashing assembly extends outward with a four-inch minimum slope away from the glazing. Interior finishes include Marmoleum flooring over felt expansion joints and insulation, a hydronics system embedded in the floor assembly, and a wood base with a roller shade guide visible beyond.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
