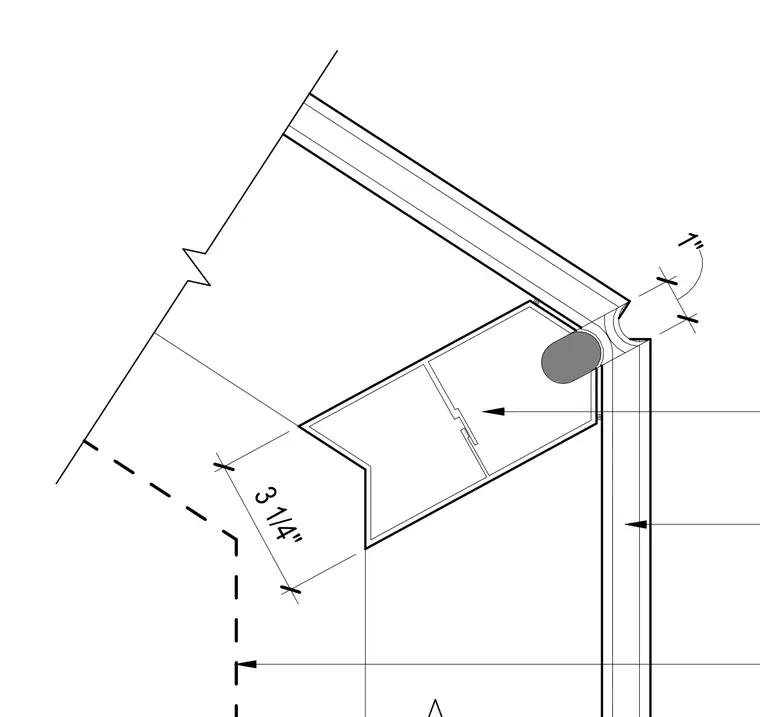

An aluminum curtain wall corner assembly features interlocking profile extrusions with a joint dimension of three and one-quarter inches and a one-inch clearance zone. Gasket and sealant placement is indicated at the exterior corner junction.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
