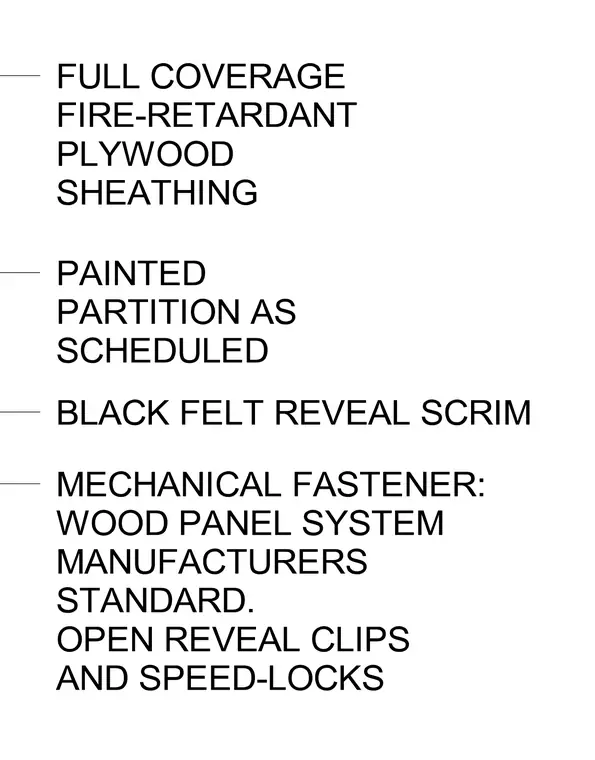

This interior wall assembly consists of a painted partition as scheduled backed by full coverage fire-retardant plywood sheathing. A black felt reveal scrim is installed behind the panel joints. The wood panel system is secured using manufacturers standard mechanical fasteners, open reveal clips, and speed-locks.
